Adding Operator-Name

Cisco ISE doesn't insert O-N into the Request by default. O-N helps Home sites identify where their users' authentications are coming from. Combined with Chargeable User Identity, Home and Visited sites can provide and follow an audit trail back to a user without the Visited site knowing the users' details.

Adding the Operator-Name attribute

  • Go to PolicyPolicy ElementsDictionaries.
  • Open up the System dropdown.
  • Open up the Radius dropdown.
  • Click on IETF.
  • Click on unknown-126 and enter
    • Attribute Name as 'Operator-Name'
    • Data Type as STRING
    • Direction as IN
  • Click Save

Modify the Request packet

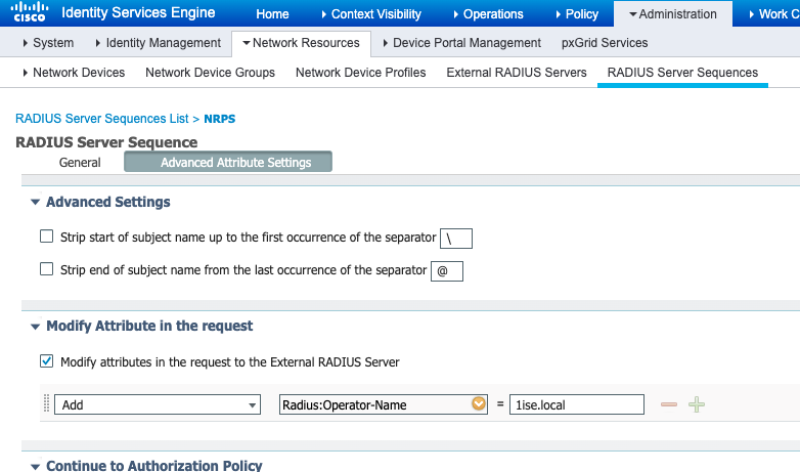

  • Go to AdministrationNetwork Resources RADIUS Server Sequences.
  • Click on which-ever server sequence relates to the Jisc NRPS.
  • Click on Advanced Attribute Settings
  • Enable Modify Attribute in the request
  • Choose Add - Radius:Operator-Name - 1realm (where realm is your primary realm e.g. 1holby.local)
  • Click Save
