FreeRADIUS Certificate (TLS) Configuration

From the RADIUS point of view, this is pretty easy, with only minor changes to the base configuration.

The hard bit is the certificates themselves. Not only do they have to work with RADIUS but they also have to cope with the idiosyncrasies of the operating systems they're installed on.

Instructions for generating client certificate PKI.

If you've got a RADIUS configuration that works for EAP-PEAP then the changes would be in the mods-available/eap file.

eap {
      ...

      tis-config {
                   ...

                   private_key_file = <Private key for the server cert created above>
                   certificate_file = <Server certificate created above>
                   ca_file = <Root CA created for the client cert above>
                   ...

                  }
     }

The private_key_file and the certificate_file define the server identity. The client carries the Root CA so that it can authenticate that the server is derived from the PKI. IF these are already set as part of the EAP-PEAP config then there's no need to change them. The Client→Server auth and Server→Client auth should be separate operations and work with completely different PKIs.

The ca_file is actually used to authenticate the clients in the same way as above. When the client sends the certificate the server uses the Root CA to prove that the client is derived from the PKI.

Using eapol_test is the easiest and most reliable way to test EAP-TLS

network={
    ssid="govroam"
    key_mgmt=WPA-EAP
    eap=TLS
    identity="<Outer ID>"
    ca_cert="<CA Certificate>"
    client_cert="<Client Certificate>"
    private_key="<Client Key>"
    eapol_flags=3
}

ProfileCreator and the CAT aren't good enough to generate suitable mobileconfig files. ProfileCreator doesn't appear to include the right fields and the CAT can't deploy client certificates.

The only way appears to be to use Apple Configurator 2.

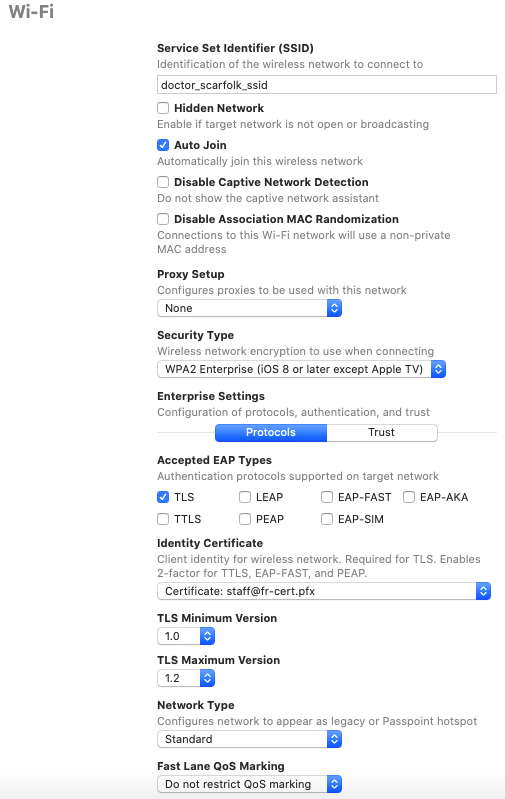

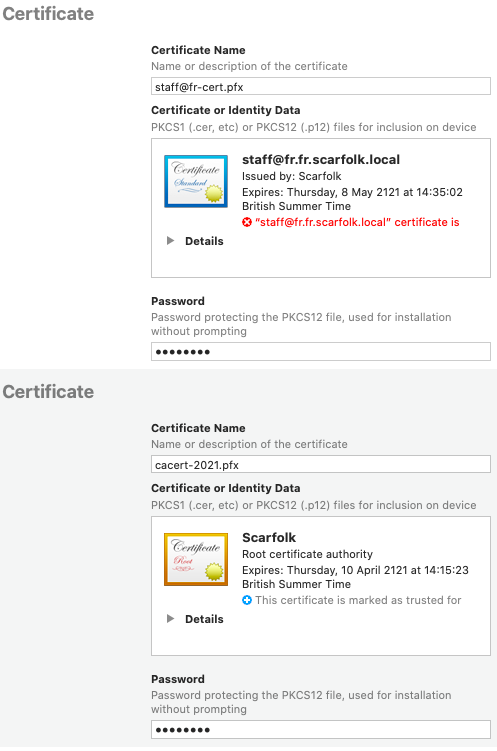

Create a profile that contains the client certificate, the root CA certificate and the wireless configuration for the SSID. The certificates must be in PKCS12 format with a password. The wireless configuration sets the SSID, the security type (WPA2 Enterprise), EAP Type of TLS and the identity certificate.
